Fasti Waveform examples
| During the last phase of debug, we produced some waveforms with the Fasti sequence generator, the svb1. We present here two exaples. The firt one is a rolling-bit waveform: each bit is asserted in turn for 10 clock cicles. From display we can measure the clock cycle to be 112 ns. |
|

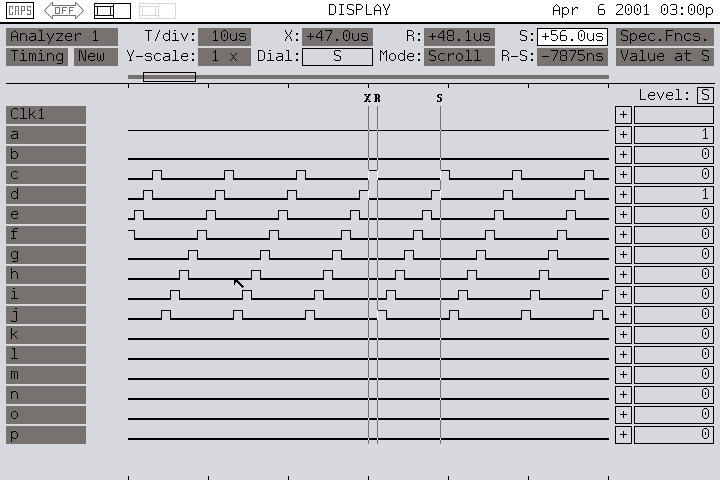

Logic analyzer display of rolling-bit pattern.
The source code is here. |
|

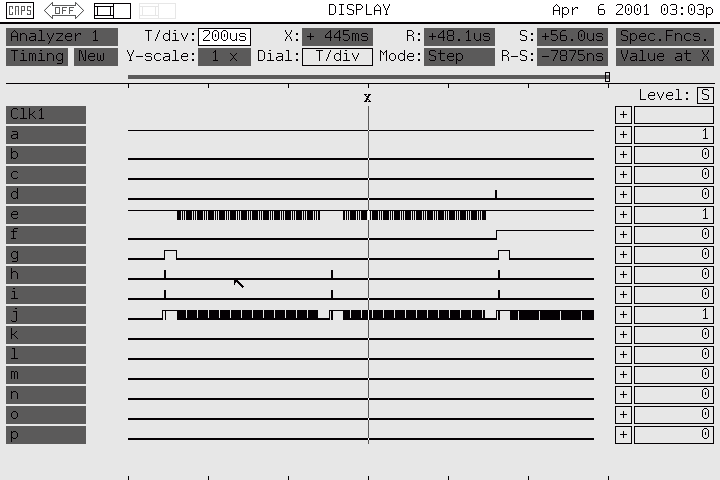

To give an example of real life pattern, we present a little
portion of arnica (Nicmos3) clocking pattern.
|
|
|
