Jets and outflows from young stars
The
formation of a new star from the
gravitational collapse of a gas condensation is accompanied by ejection of part of the infalling matter through powerful winds. This ejection activity spans all the
phases of the process and occurs for all stellar masses. Highly supersonic collimated jets flow
with velocities up to 100-500 km/s and shine through the emission from internal
shocks. The jets are often embedded in massive outflows, moving at 1-30 km/s, ambient
gas swept-up by the jet bow-shocks. To
complete the picture, slow wide-angle winds ejected from the disk carve a conic
cavity around the base of the jet in the envelope still surrounding the newly-born star.
Figure 1. Jet from RY Tau
imaged in
emission lines with VLT/SPHERE (Garufi et al. 2019, A&A 628,68)
The beauty
of these flows is outstanding, but they are not just amazing fireworks in the
sky: actually they are believed to have a fundamental role in the formation process.
In the most widely accepted scenario, the outflow ejected off the central
regions by a gigantic magnetic sling
carries away some angular momentum, thus allowing the material in the system to
slow down its rotation rate and slide toward the young star, even for
negligible disk viscosity. The mechanism allows to justify
quantitatively the observed accretion rates.
In addition,
the outflow can influence the disk chemistry by shielding the magneto-spheric activity and/or irradiating the disk with energetic
photons and cosmic rays produced in the jet shocks. Note that the flows are
launched from the inner 10-20 au of the disk, thus they may affect
significantly the formation of planets.
The Arcetri group has been investigating the outflow phenomena
since many years, through observations from UV to cm wavelengths taken with ground-based as well as space
telescopes and interferometers (e.g. VLT, HST, Herschel, ALMA, IRAM-30m and
IRAM-NOEMA, VLA). The group is involved in a
number of observational campaigns and large programmes
(LP) devoted to the study jets and outflows such as the IRAM-30m LP ASAI the IRAM-PdBI LP CALYPSO, the IRAM-NOEMA LP SOLIS, the ALMA LP FAUST the observational campaign
ALMA-DOT, and the HST large programme ULLYSES and related archival programme
ODYSSEUS, for the relationship with accretion
in T Tauri stars.
The group
participates to the national collaborations JEDI (Jet and
Disks @ INAF), FRONTIERA, GENESIS-SKA, and has important partnerships with
international teams based in Europe, US and Asia. We also collaborate to the
development of new instruments as VLT/MAVIS and VLT/ERIS.
In the following the main lines of research followed by the
group are described.
Jet
diagnostics
The rich
emission line spectra at UV, optical ,NIR and mm wavelengths allow us to derive
many fundamental jet morphological, physical,
and kinematical properties, e.g. the jet velocity and collimation, the gas
density and temperature, the molecular column density and abundance, and
finally the mass and momentum transported by the jet. The Arcetri group is a long-standing
authority in such analyses, exploiting observations
carried out from the ground
with VLT, GEMINI and LBT and from space with HST and Herschel. In the radio
domain the NOEMA and ALMA interferometers are used. In the future, JWST and
ELT/HIRES will be instrumental in improving our knowledge of jet physics.
Jet rotation
If the excess angular momentum of the disk is removed by the jet, then jets will rotate. Astronomers of
the Arcetri team discovered the first signatures of rotation observing with
HST (fig. 2, left). This not only confirmed the magneto-centrifugal launch
scenario, but provided us with an unique tool to infer
the size of the launch region on the disk.
Since then, rotation signatures have routinely been searched for in many
jets, and they have recently been confirmed with ALMA
observations (fig. 2, right).

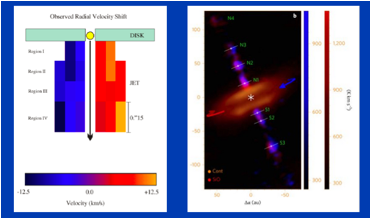

Figure 2. Left: first signature of jet rotation from HST
observations of the DG Tauri system (Bacciotti et al. 2002, ApJ
576,222). Right: ALMA observations of the SiO jet HH
212 (Lee et al. 2017, NatAs 1,152). In both cases the blue/red velocity shift
indicates rotation around the axis.
Jets
from Sun-like early stage Class 0 protostars
Our team leads observational campaigns to investigate the role of
jets and outflows at the earliest stages of the formation of a Sun-like star,
i.e. targeting Class 0 protostars of age 10e4 years.
At these stages the star is very embedded and the jet emits in rotational
transitions of molecules which probe the shock, such
as CO, SO, and SiO, in the millimetre
range. These campaigns are executed using millimetre
interferometer such as IRAM-NOEMA and ALMA, which offer an
unprecedented combination of angular resolution and sensitivity. An example is the large programme CALYPSO. At NIR
wavelengths, the group participates to a survey conducted with HST, propedeutic to the studies with JWST.
These surveys demonstrate that outflows and jets are ubiquitous and
appear very early at the protostellar stage,
confirming that they have a key role in the star formation process. The mass
ejection rate is much higher in the early phases than what is measured for
pre-main sequence stars, which suggests that ejection decreases as the star
evolves and accretion fades.
Jets
from high mass protostars
Jets and
outflows are associated with the formation process of stars of all masses. Our
interest is focused on outflows from early-type stars and on their relationship with circumstellar disks. We study both the radio continuum
emission from the thermal jets and the molecular emission from the outflows
through species such as CO and its isotopologues and
shock tracers like SiO. We also image the H_2 line
and continuum emission from jets/outflows at near-IR wavelengths with 8-m class
telescopes, using AO techniques when possible. One of the outcomes of our study
is to establish the relationship between the accretion rate (through the disk)
and the mass loss rate (through the jet/outflow) in newly formed massive stars.
An intense
(maser) emission of the water molecule is often associated with the outflows
from high-mass (M > 7 M_sun) forming
.This water line is a powerful diagnostic tool, which allows us to
measure the three-dimensional velocities of the outflowing gas. A recent water maser survey performed by the Arcetri
team (POETS) has revealed that the jets from massive protostars
are also rotating, suggesting that the processes of mass accretion-ejetion are similar across the whole range of protostellar mass.
The chemistry of shocks in protostellar
jets
High-velocity
shocks caused by protostellar jets impacting the
surrounding medium are perfect astrochemical laboratories. In the shocks the
ice mantles covering dust grains is sputtered, releasing
molecules into the gas phase. A large number of molecules, including deuterated molecules, O-, S-, N- and Si-bearing molecules,
as well as the so-called interstellar complex organic molecules (iCOMs) are observed towards shocked regions. These are the
building blocks of prebiotic chemistry. Our team is deeply involved in the
study of shock chemistry, in the context of the IRAM-30m LP ASAI (Astrochemical
Surveys At IRAM) and the IRAM-NOEMA LP
SOLIS
(Seeds Of LIfe in Space). The comparison between the observed
iCOMs abundances and those predicted by astrochemical
models can shed light on the formation routes of key complex organic molecules,
such as acetaldehyde (CH3CHO), and formamide
(NH2CHO).

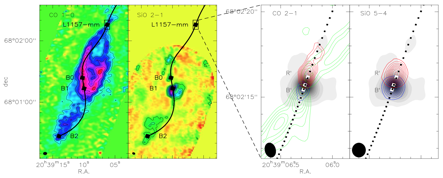

Figure 3 The jet and
outflow driven by the Sun-like protostar L1157-mm
located in Cepheus at a distance of ~352 parsec. The precessing large scale molecular outflow extending out to ~0.2 pc distance
from its driving source (left panels) is driven by a collimated high-velocity
(~100 km/s) molecular jet recently revealed in the inner ~100au by IRAM-PdBI observations obtained within the CALYPSO large programme (right panel)
